Series 270 Control Valve

HOME / PRODUCTS / DYNA-FLO / CONTROL VALVES / 270 CONTROL VALVE

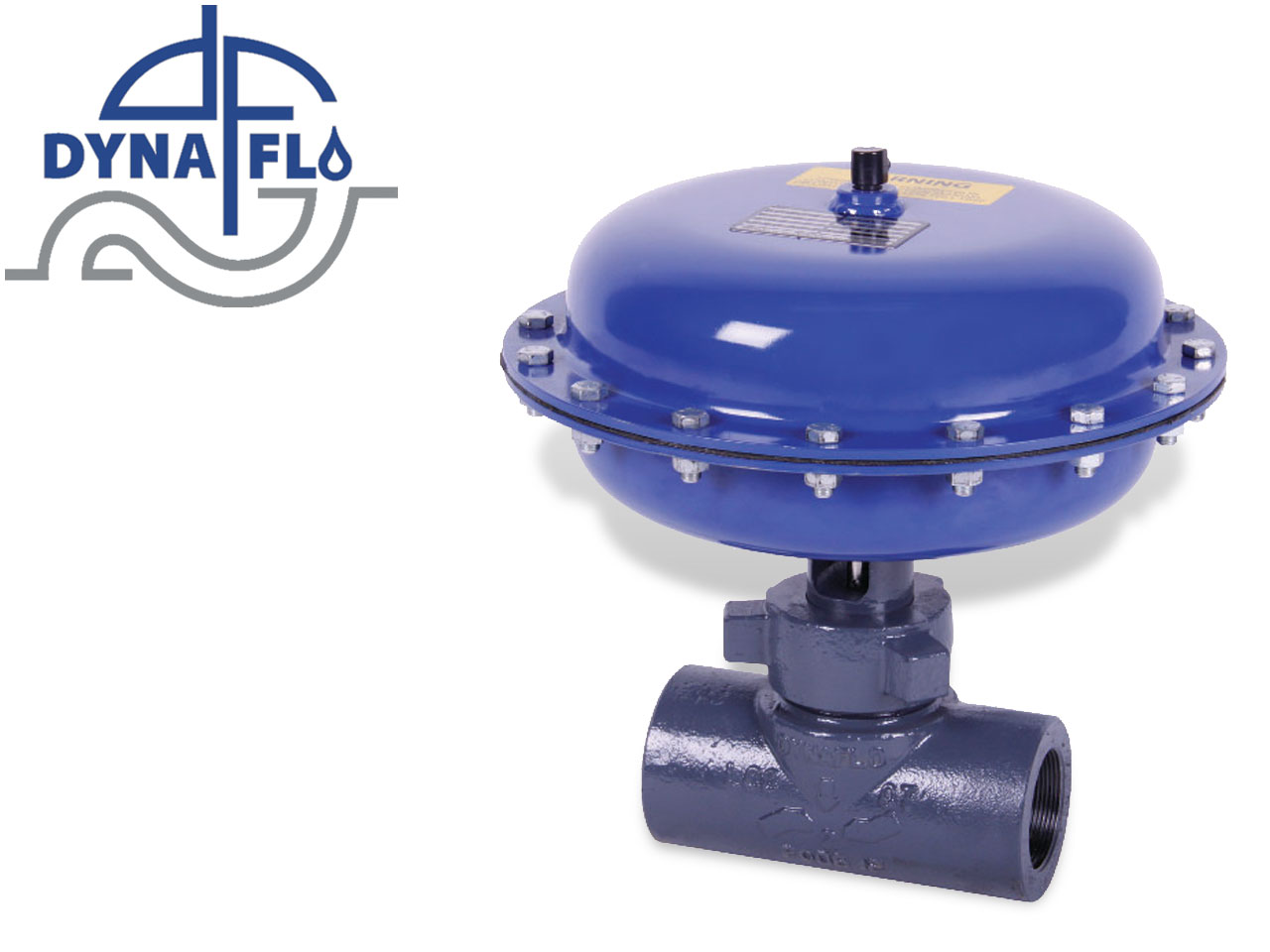

DYNA-FLO SERIES 270 CONTROL VALVE

HEAVY-DUTY, HIGH PRESSURE GLOBE STYLE

MODEL: DF_270_CV

LCM Industries offers the Dyna-Flo Series 270 control valve. The Series 270 is a rugged globe style control valve intended for demanding applications in process control. It is suitable for a wide range of applications, especially high pressure and severe service. The compact design makes installation and maintenance more convenient than traditional valve and actuator assembles while still offering the same functionality. The Series 270 is designed to accept instrumentation requiring valve stem linkages making it an excellent control valve.

Contact your LCM Industries sales representative for more details.

Request a Quote

Features

Live loaded packing
Field-reversible from spring-to-close to spring-to-open
Threaded hammer nut
Standard NACE construction
Simple installation and easy maintenance
Suitable for applications to -45°C / -50&F

FEATURE	DESCRIPTION
Sizes	1″ & 2″
ASME Ratings	ASME Ratings as per B16.34, Classes 150, 300, 600, 900 & 1500
End Connections	Raised Face (RF), Ring Type Joint (RTJ) (Class 600, 900 & 1500), and NPT (FNPT) (CWP: 2,250Psi / 15,513 kPa)
Available Body Styles	Globe and angle
Port Diameters	1/4″, 3/8″, 1/2″, 3/4″ & 1″
Available Shut-off Class	Class IV
