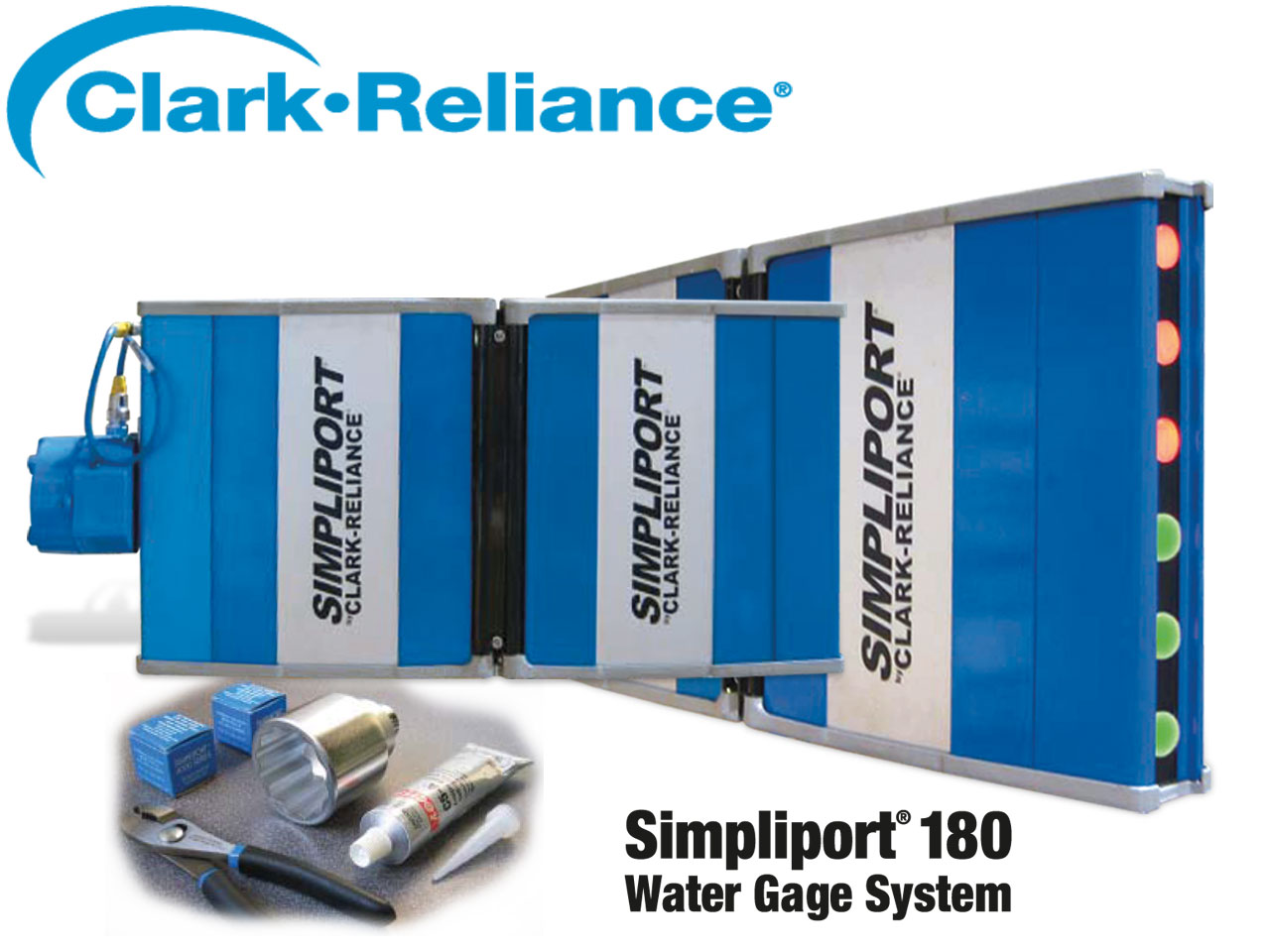

CLARK-RELIANCE^® SIMPLIPORT^® 180° BOILER WATER GAGE VIEWING SYSTEM

BOILER WATER LEVEL AT ANY ANGLE, ANY DISTANCE

MODEL: CR_SP180_BWG

View boiler water level at any angle or distance. Installed worldwide since 1962, the Clark-Reliance^® Simpliport^® boiler water level glass gages provide reliable direct-reading, bi-colored indication. New wide angle optics illuminates boiler water level at any angle, any distance. Design improvements have made installation and maintenance much easier to install, easier to maintain and now, much easier to view. Wherever you may be standing within 180° of the Simpliport^® wide angle hood, you can clearly see the bright red or green indication of steam and water level. You’ll decrease your exposure time to the boiler environment while maintaining a crystal clear view of a direct reading gage as required by ASME.

Request a Quote

Features

WIDE ANGLE HOOD

Clear and bright viewing from any angle, any distance
Improves visibility of existing gages, can provide cleaner readings from dirty contaminated gages, and easy to retrofit
Eliminates need for mirrors in most applications
East to install, new mounting bar design eliminates spring pins
For indoor or outdoor use

COMMISSIONING KIT INCLUDED

For commissioning purposes, Simpliport^® gages are furnished with two spare Glass Disc Modules, a 1-7/8″ socket, a 3/4″-1/2″ drive adaptor, high temperature thread lube, and module extractor pliers.

PROVEN BI-COLOR GAGE

Direct reading up to 3000 PSI (206 Bar)
Spiral wound sealing gaskets
No hot-torquing required
Highest quality (V1), thickest (30 mil) mica shields

SPECIFICATION	DESCRIPTION
Power Supply	120 or 240 VAC @ 50-60 Hz
Power	.10 Amp @ 120 VAC
Consumption	.10 Amp @ 240 VAC
Estimated Life	Up to 10 years (continuous)
Agency Approval	FM
Conformance	Meets ASME Boiler Code, Section One
Location Rating	Indoor or outdoor ordinary locations
Wire Size	Min. 16 AWG / Max 12 AWG
Max Distance from Power Supply to Light	9′ (27.5 M) Standard Cable = 8′ (2.5 M)
Ambient Temperature	-40˚F (-40˚C) to 170˚F (77˚C)
LEDs	High intensity 10 year red and green LEDs
Pressure	Up to 3000 psi
Materials	304SS cage, illuminator and wide angle optic hood
Commissioning	Commissioning kit included
Sealing	Spiral wound sealing gaskets
Visibility Lengths	10-1/4″ (260 mm) to 71-5/8″ (1819 mm)
