Series DFC/DFO Actuators

HOME / PRODUCTS / DYNA-FLO / CONTROL VALVES / DFC/DFO ACTUATORS

DYNA-FLO SERIES 2410 CONTROL VALVE

LOW SUPPLY PRESSURE FAIL-SAFE OPERATION

MODEL: DF_DFC_ACT
MODEL: DF_DFO_ACT

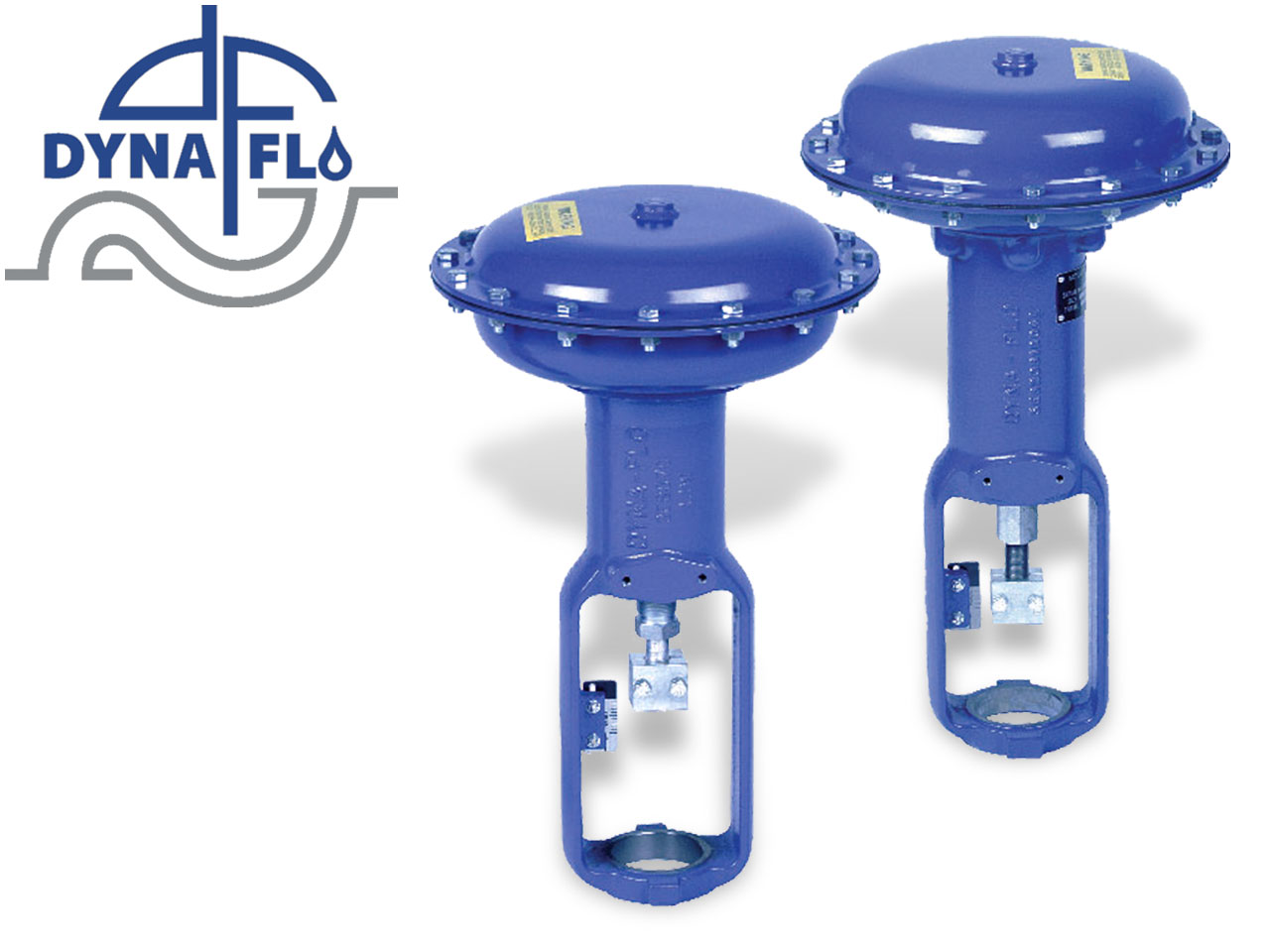

LCM Industries offers the Dyna-Flo Series DFC and DFO linear actuators. These actuators feature a large diaphragm area allowing for low supply pressure operation, and the spring provides fail safe positions of a control valve on loss of pneumatic supply. Model DFC actuators are fail-safe closed (down). Model DFO actuators are fail-safe open (up).

Contact your LCM Industries sales representative for more information.

Request a Quote

Features

Open yoke, open stem valve
Versatile mounting options for instrumentation and accessories
Throttling and on/off control
Side and top mount handwheel options available
3″ max. travel on specific configurations

FEATURE	DESCRIPTION
Fail Position	• DFC fail-safe closed • DFO fail-safe open
Diaphragm Areas (Inches²)	46, 69, 105, 156 & 220
Available Mounting Connections	2-1/8″, 2-13/16″ & 3-9/16″
Operating Pressure Range	• 3-15 Psig (21-103 kPag) • 6-30 Psig (41-207 kPag)
