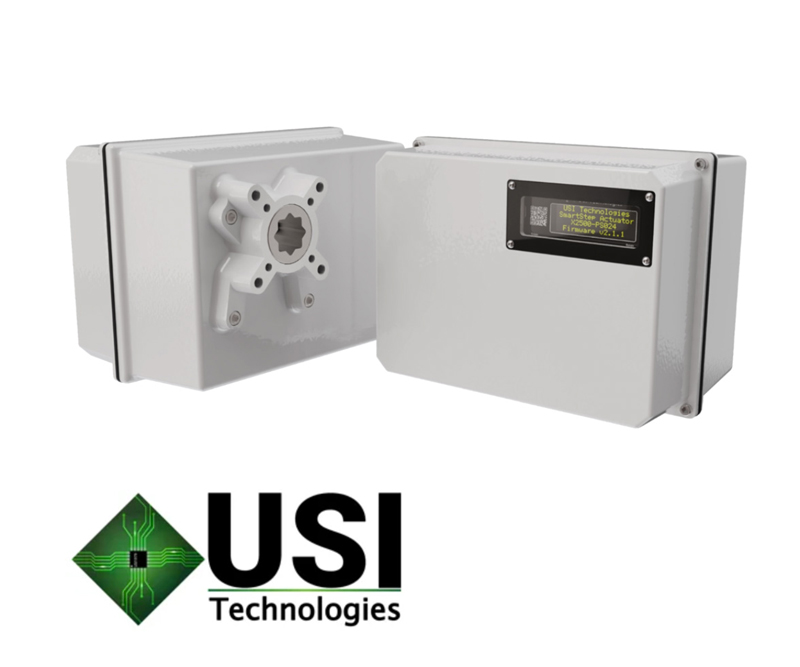

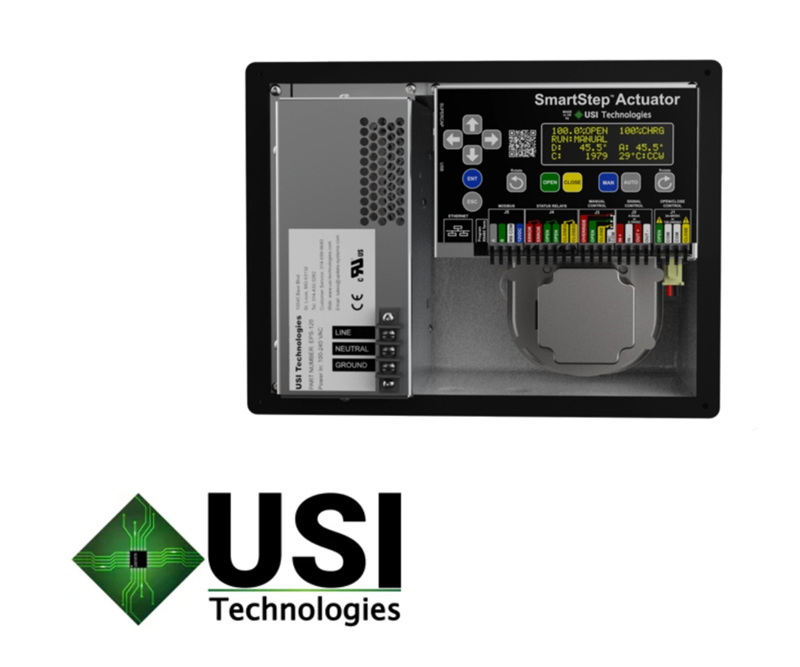

AC or DC Powered Precision Electric Actuator
USI’s fourth generation actuator builds on the strengths of the generations before it while adding extra functionality in a hazardous location rated standard package for all models.
-
- Hazardous Location Rating is standard: Class 1, Division II, Group A, B, C, and D
- Non-Contact Position Sensing: No mechanical switches to wear out
- Capacitor Based Electronic Power Backup: Allowing for backup lifespan of greater than 10 years
- Customizable Speed Settings: Each model may be customized to fit your Open/Close speed needs
-
- X0400: 3-10 seconds for 90° rotation
- X1200: 7-20 seconds for 90° rotation
- X2500: 12-36 seconds for 90° rotation
- X5000: 28-80 seconds for 90° rotation
- Programmable Feedback Standard: 4-20mA feedback allows remote reading of exact position of the actuator shaft
- High Number of Starts Per Hour: Can exceed 6000 starts per hour
- Permanently Lubricated Drivetrain: No maintenance needed
- 100% Modulation Standard: 4-20mA or 0-10V DC control input standard
